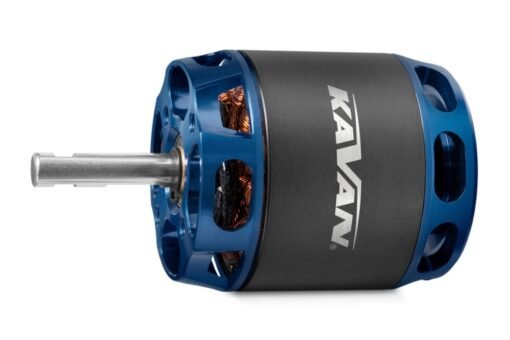

KAVAN Brushless Motor PRO 3542-830

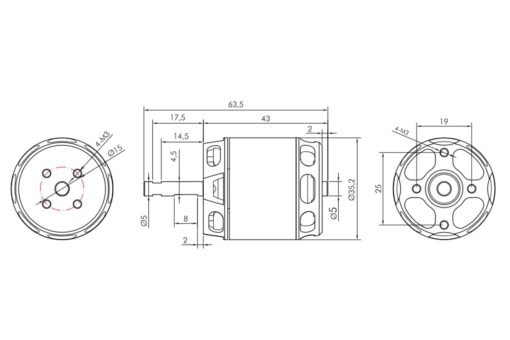

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.Motor Designation System: PRO xxYY-zzzzPRO – brushless outrunner electric motorxx – motor diameter in mmYY – motor length in mmzzzz – revolution per minute per Volt (RPM/V), “KV“KAVAN PRO 3542-830KAVAN PRO 3542-830 is a motor for model aeroplanes up to 2400 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for 2800-3000 mm electric powered thermal gliders, 3D aerobatic models – it is more suitable for slower models that work better with a larger propeller with lower rpm.Motor installation: KAVAN 3542-830 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 4.0-5.0 mm plywood. The radial mount set is supplied with the motor.Powering LiXX cells3 – 4RPM/V [ot./min/V]830Max. power (180 s) [W]700Internal resistance [mOhm]39Open-circuit current (při 10 V) [A]1.6Max. peak current (180 s) [A]45Diameter [mm]35.2Length [mm]41Length celková [mm]63.5Shaft diameter [mm]5Weight [g]139Poles count14Timing [°]20 – 25ESC [A]50 – 60Weight of glider (up-to) [g]2400Weight of trainer (up-to) [g]2200Weight of acrobat (up-to) [g]1900Weight of 3D (up-to) [g]1400
